The

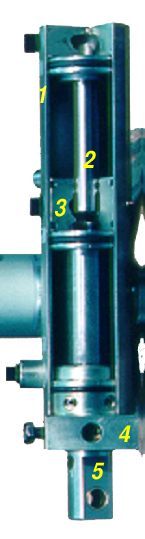

"OhmaŽ Cylinder" designed by CenterlineT (Windsor) Ltd. consists
of a small bore (1.75", 2" or 2.625") barrel (#1) , a visible working
piston (#5), an internal intensifier piston (#2), an internal middle
separator (#3) and a mounting block (#4).
The OHMA cylinder has three ports:
 Return
Port (Air)
Intensifier
Port (Air)
Advance
Port (Fluid)
The outside of the barrel is fitted with an air manifold that is
used to route return air pressure to the rear of the cylinder in
order to retract the internal intensifier piston. The OHMA cylinder
has several mounting style configurations that are designed either
for specific transgun styles or stand-alone weld cylinder applications.
|
